Era Vectis Classic Lever Moveable Pad UPVC Multipoint Door Handles – 95mm PZ Sprung 122mm Screw Centres
£21.08 – £32.73Price range: £21.08 through £32.73

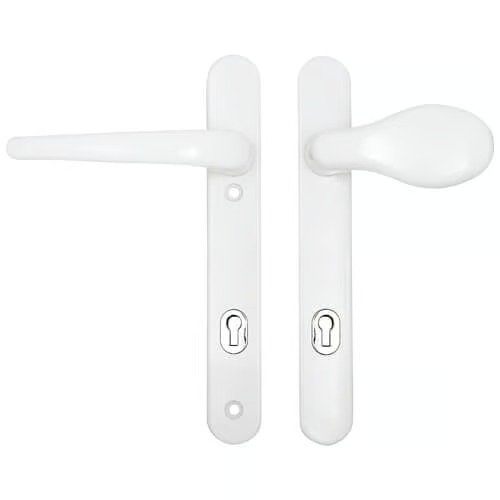

This handle set is specifically designed to fit the ERA Vectis range of multipoint locks which have a standard UK keyway.
From the Vectis Classic range these have a sprung 95pz internal lever handle & external moveable pad, with a backplate lof 220mm x 32mm they are available in white and gold finishes.
- Description
- Additional information
- Reviews (0)
Description
This handle set is specifically designed to fit the ERA Vectis range of multipoint locks which have a standard UK keyway.
From the Vectis Classic range these have a sprung 95pz internal lever handle & external moveable pad, with a backplate lof 220mm x 32mm they are available in white and gold finishes.
The distance between the fixing screws is 122mm with the bottom screw positioned 30mm below the keyway.
They are supplied as a pair complete with fixings consisting of spindle & colour co-ordinated screws.

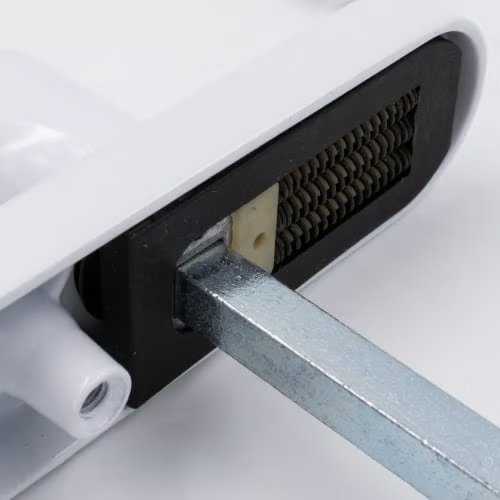

- Sprung
- Length: 205mm
- Width: 28mm
- Centres (PZ): 95mm
- Screw Centres: 122mm
- Base of euro to bottom screw: 30mm
- Top screw to spindle: 22mm
- Supplied with spindle and screws
- Supplied as a pair
- Non-handed
- Boxed
Product FAQs
Which type of lock is this handle used on?
This is used on Era Vectis locks.
I need to achieve 3* for insurance purposes how do I do this?
3* can be achieved by fitting a 3* cylinder such as Versa,ABS,Pextra Guard,ATK and Yale Platinum
Additional information
| Colour | White, Chrome |
|---|
